B2 Audio RAMPAGE Series 12" Dual 1-Ohm 4" Voice Coil 5000 Watt RMS Subwoofer

SKU: B2-RAMPAGE12-ELITE-D1

Sale price$999.95 Regular price$1,299.95

On Sale

Shipping calculated at checkout

Quantity

−

1

+

Only 6 in stock

Spend $100 to get free shipping

Add Accidental Protection from CPS LogoLearn More

2 Years

$81.00

3 Years

$108.00

Add to cart

Buy with

More payment options

From $90.25/mo or 0% APR with

Check your purchasing power

Your purchasing power is

.

See plans

or as low as $44.77/mo. with

or 4 payments of $249.99 with Sezzle ⓘ

Starting at $63/mo or 0% APR with affirm. See if you qualify

Shop with confidence

Fast shipping

Live Customer Service

Trusted reviews

Flexible financing available

Choose a provider to learn more

Snap Finance logo

Snap Finance

Acima Financing logo

Acima Financing

American First Financing logo

American First Financing

Klarna logo

Klarna

Affirm logo

Affirm

Sezzle logo

Sezzle

Cash App Afterpay logo

Cash App Afterpay

Owners Manual

Download

Description

5000W RMS / 10,000W MAX – Built for serious SPL performance with extreme power handling.

Dual 1 Ohm 4” Voice Coil – 8-layer aluminum winding for superior conductivity and heat resistance.

Massive 1100oz Ferrite Motor – Ensures deep, controlled bass with heavy motor force.

Carbon Fiber Cone & TWS Foam Surround – Lightweight, responsive cone material paired with tall foam surround for maximum excursion and durability.

Optimized for SPL & Enclosure Tuning – Sealed, ported, or 4th-order bandpass options available; ideal for competitions and ground-pounding systems.

B2 Audio RAMPAGE Series 12" Dual 1-Ohm 4" Voice Coil 5000 Watt RMS Subwoofer

Listing Includes

(1) 12" RAMPAGE DVC 1-Ohm Subwoofer

Item Description

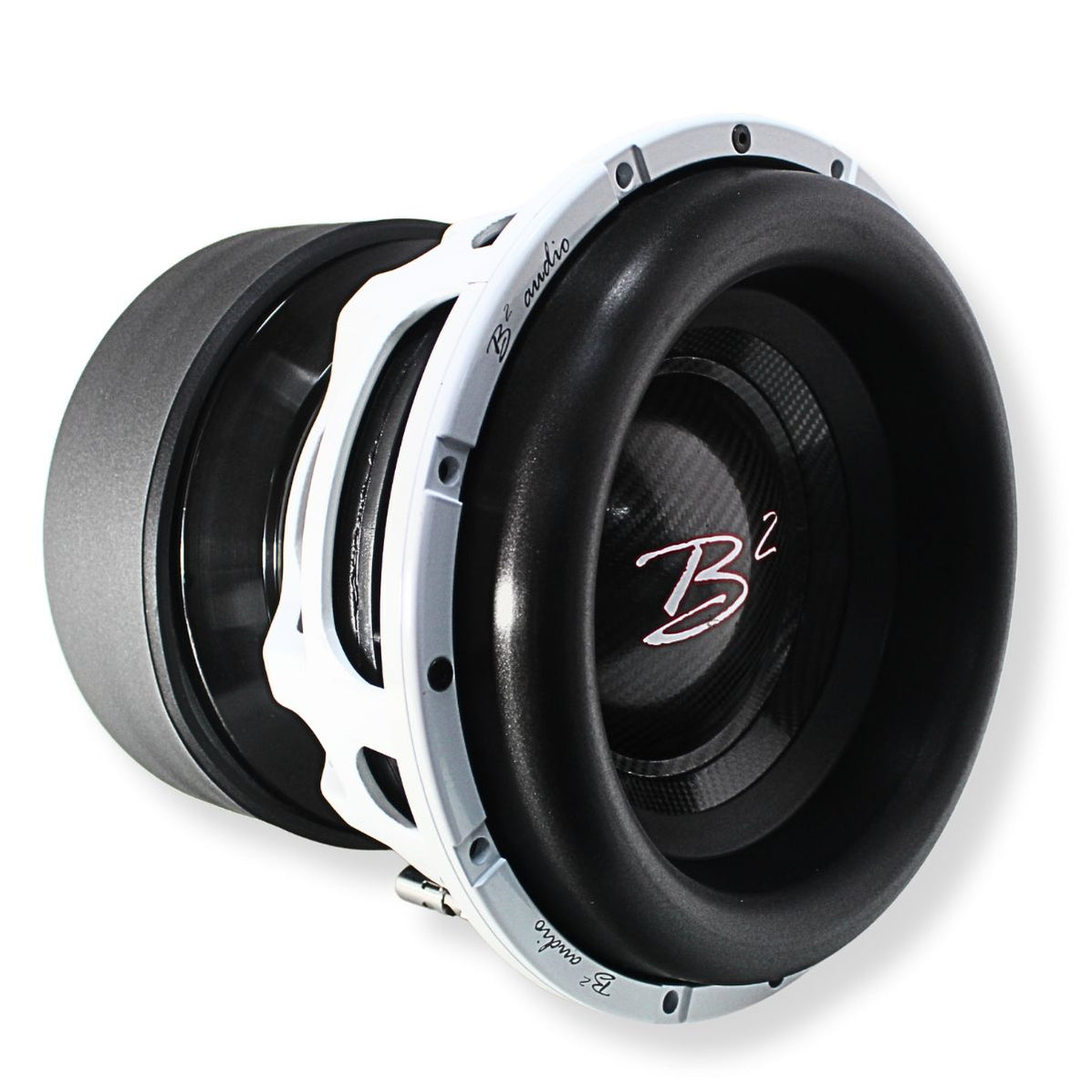

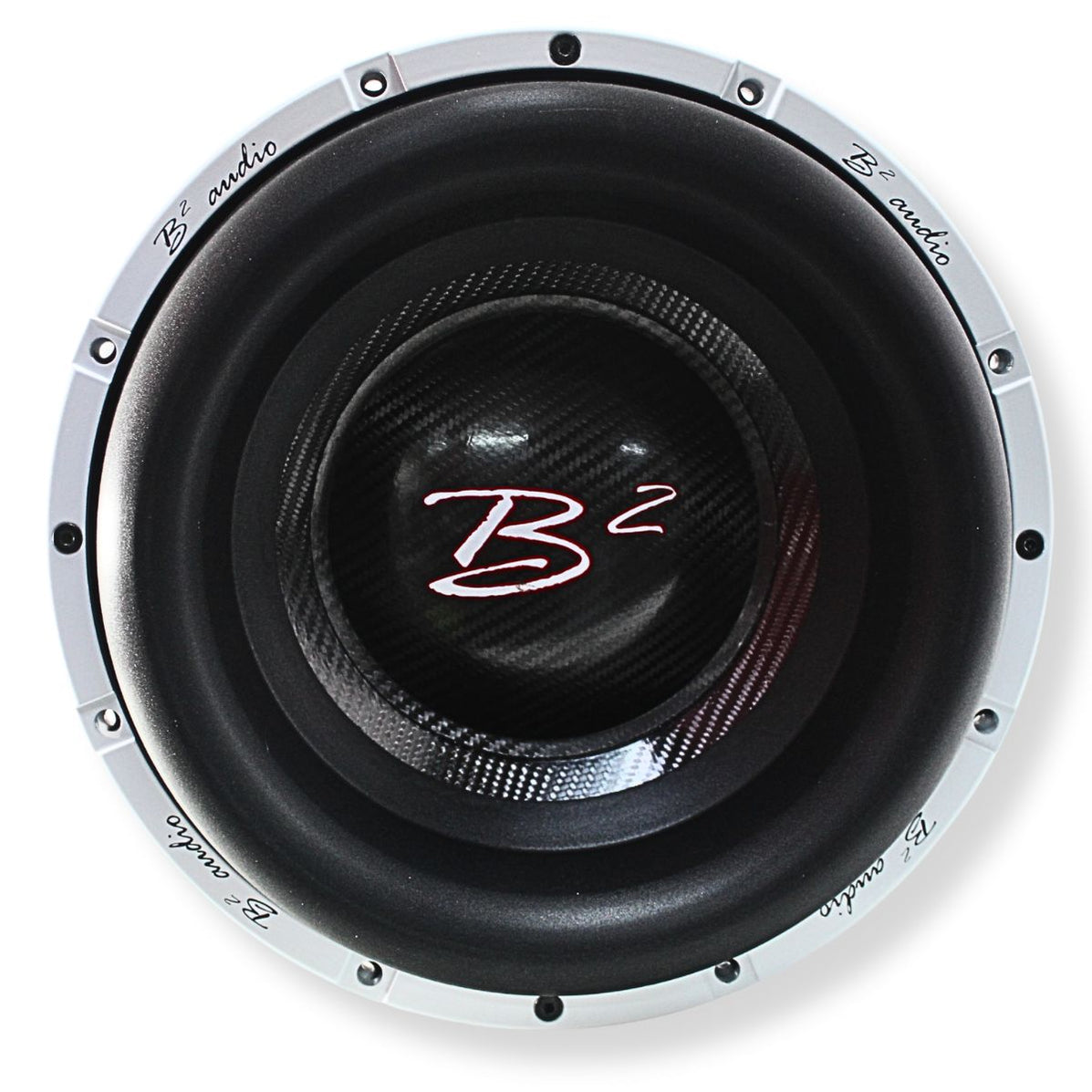

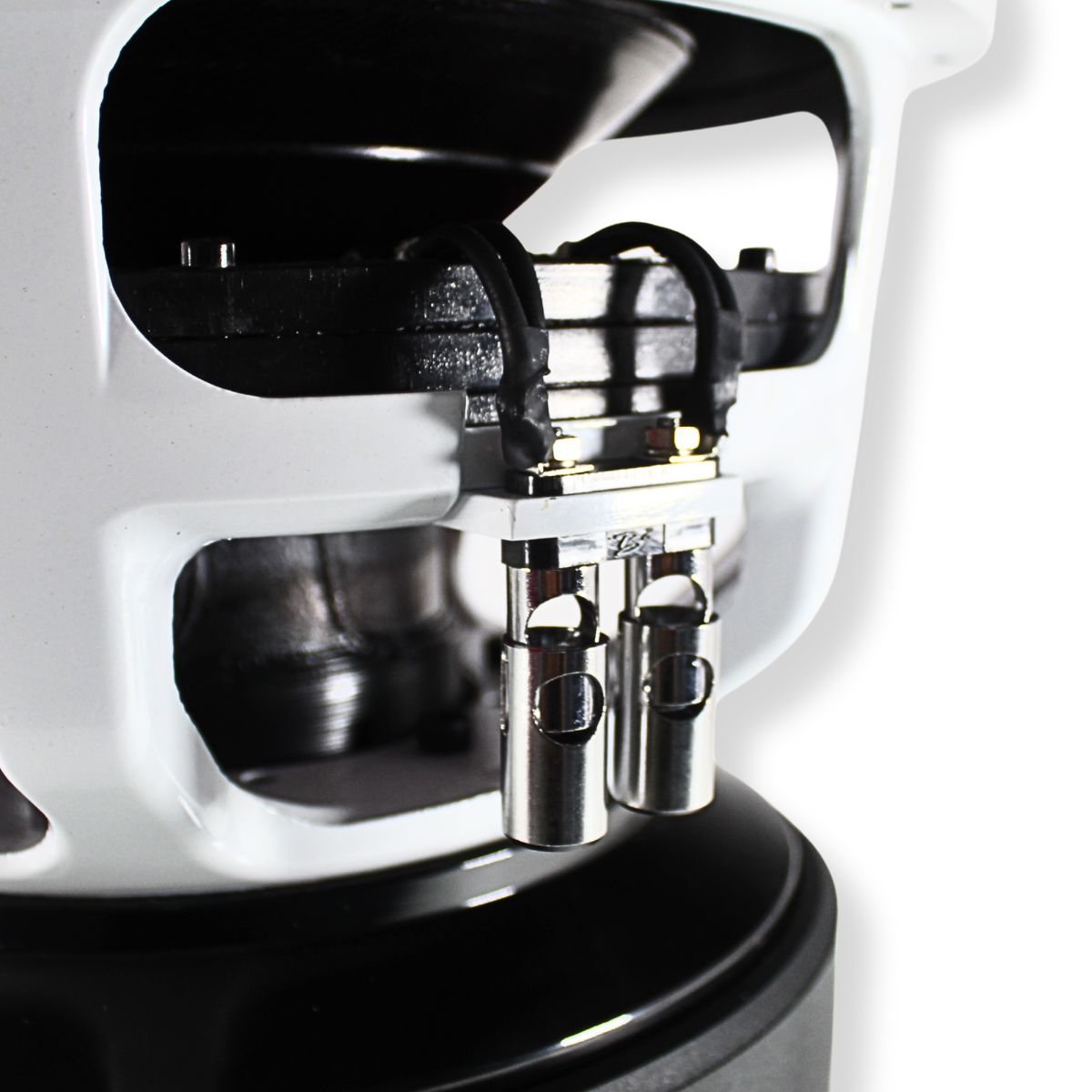

B2 Audio RAMPAGE12-ELITE-D1 12" Subwoofer – Pure Bass Authority

Step into elite-level bass with the B2 Audio RAMPAGE12-ELITE-D1, a 12" subwoofer designed for unrelenting SPL power and performance. With 5000 Watts RMS and a staggering 10,000W peak, this beast delivers clean, low-end force that shakes the pavement.

Crafted with a carbon fiber cone, TWS tall wide foam surround, and a 4-inch 8-layer aluminum voice coil, this subwoofer is engineered to move serious air. The dual 1-ohm impedance configuration gives you flexible wiring options to push maximum wattage from your amplifier setup.

The RAMPAGE Elite’s ferrite magnet motor assembly weighs in at over 1100oz, supporting 40mm of Xmax (one way)—that’s some serious excursion for brutal lows and responsive dynamics. Whether you're building an SPL monster or a daily flex beast, the RAMPAGE12-ELITE-D1 performs at the highest level.

Features

High-performance 12" competition-grade subwoofer

5000W RMS / 10,000W peak power handling

Dual 1 Ohm configuration for flexible wiring options

Oversized 4" / 101.6mm 8-layer aluminum voice coil

Premium carbon fiber cone for lightweight strength

TWS tall wide foam surround for extended excursion

Massive 1100 oz ferrite motor for unmatched motor force

Cast aluminum basket for reduced resonance and rigidity

40mm one-way Xmax for deep, clean, and hard-hitting bass

Engineered for SPL competitions, demo builds, and extreme daily setups

Wide frequency response from 10Hz to 500Hz

Designed to perform in sealed, ported, or bandpass enclosures

Hand-built quality from B2 Audio for serious audio enthusiasts

Specifications

Subwoofer Size: 12 Inch

RMS Power: 5000 Watts

Peak Power: 10,000 Watts

Impedance: Dual 1 Ohm (DVC)

Voice Coil Diameter: 4" / 101.6mm

Voice Coil Material: 8-Layer Aluminum

Magnet Type: Ferrite

Motor Assembly Weight: 1100 oz

Sensitivity: 81.7 dB (1w/1m)

Resonant Frequency (Fs): 32 Hz

Frequency Response: 10 Hz – 500 Hz

Cone Material: Carbon Fiber

Surround Material: TWS Tall Wide Foam

Xmax (one way): 40 mm

MMS: 610 g

Vas: 11.2 L

Qts: 0.44

Qes: 0.47

Qms: 7.17

Re (DC Resistance): 1.7 Ohm

Le (1 kHz): 1.83 mH

EBP: 68.1

Efficiency: 0.09%

Sd (Cone Area): 461.5 cm

Cms: 40 um/N

BL/RE: 276.4

Enclosure Suggestions:

Sealed: 28.3 L / 1 Cubic ft

Qtc: 0.433

F3: 59.6 Hz

Ported Compact: 28.3 L / 1 Cubic ft

Fb: 38 Hz

Port Area: 4 Inches

Port Length: 19.7"

Ported: 75 L / 2.65 Cubic ft

Fb: 32 Hz

Port Area: 28.3 Squared inches

Port Length: 24.4"

Bandpass 4th Order Ratio: 3:1

Dimensions

Mounting Depth: 10.2" / 258 mm

Cutout Diameter: 11.1" / 282 mm

Overall Diameter: 12.44" / 316 mm

Total Depth: 10.83" / 275 mm

Net Weight: 79.6 lbs /36.5 kg

Shipping Weight: 86.40 lbs/38 kg

Shipping Box Dimensions: 16" x 16" x 17"
