• Massive Power Output: Push your audio system to its limits with 800 watts of peak power across 4 channels, driving your speakers with precision and intensity.
• Class D Efficiency: Benefit from top-notch performance and reduced heat generation, thanks to advanced Class D technology that delivers efficient power output.
• Compact and Versatile: Enjoy the powerful performance of a large amplifier in a compact design, perfect for seamless integration into any car or home audio setup.
• Pristine Sound Quality: Experience clear, distortion-free audio across the full range, from crystal-clear highs to deep, resonant lows.
• Built-in Protection: Safeguard your system with advanced features that protect against overcurrent, short circuits, and thermal overload for reliable performance.

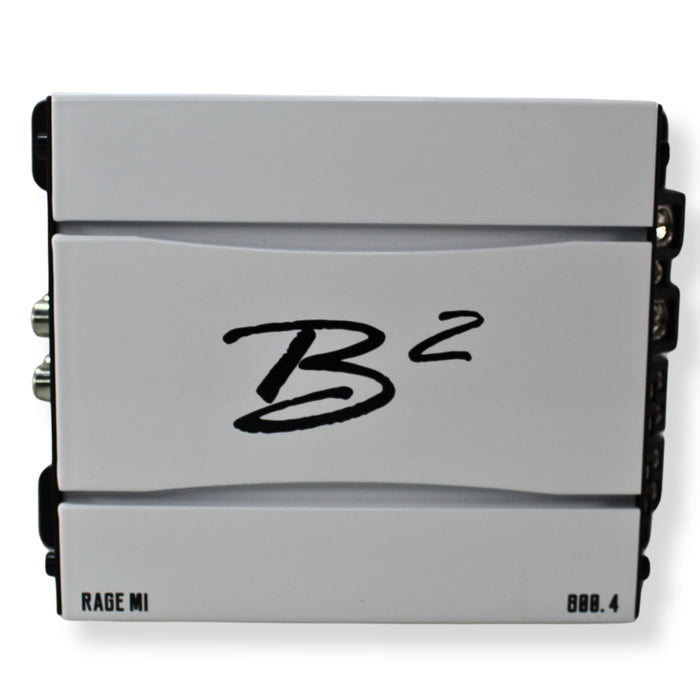

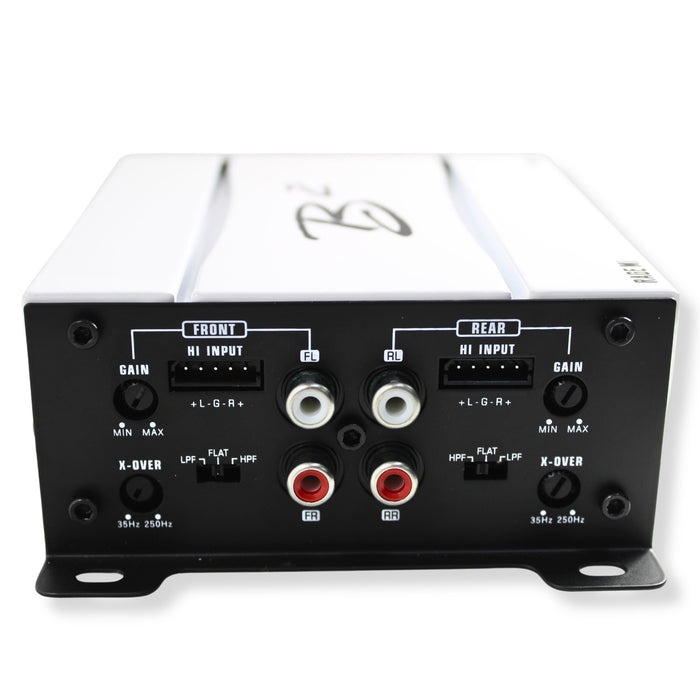

B2 Audio RAGE Micro Series 800 Watt 4-Channel Class D Full Range Amplifier

This Listing Includes:

• (1) B2-RAGE-MI-800.4 Amplifier
• (2) Hi/Low Adapter Harness
• (1) Users Manual
• (4) #2 Philip Screws (mounting hardware)

Get ready to supercharge your sound with the B2 Audio RAGE Micro Series 800 Watt 4-Channel Class D Full Range Amplifier. This powerhouse amplifier is engineered for audiophiles who demand intensity and precision. Packing up to 800 watts of raw power across four channels, it pushes your speakers to their absolute limits, delivering dynamic and vibrant sound.

This full-range amplifier utilizes Class D efficiency to maximize performance while minimizing heat generation, ensuring consistent, top-notch quality. The compact design makes it a breeze to integrate into any audio setup without compromising on power or functionality.

The versatility of the four channels lets you push the boundaries of your sound system, whether you're driving high-end tweeters or subwoofers that rattle the windows. Enjoy pristine, distortion-free audio that captures every nuance, from soaring highs to thunderous lows.

Advanced protection features guard against overcurrent, short circuits, and thermal overload, so your system operates smoothly and safely. Installation is straightforward, and compatibility with various car and home audio systems makes this amp a perfect fit for any setup.

Take your audio experience to the next level with the B2 Audio RAGE Micro Series 800 Watt 4-Channel Class D Full Range Amplifier. Whether on the road or at home, this amp is ready to shake up your soundscape and deliver the power and performance you crave. Unleash the rage and dominate your audio world!

Specifications:

• Total Watts: 800 Watts
• RMS Power @ 4 ohm: 4 x 120 Watts
• RMS Power @ 2 ohm:  4 x 200 Watts
• Circuit Configuration: Class D Full Range
• Frequency Response: 20 Hz  20 KHz
• Signal to Noise Ratio: > 82 dB
• Input Sensitivity: 6 V  0.2 V
• Crossover Circuit: 12 dB / OCT
• Low Pass Crossover: 35 Hz  250 Hz
• High Pass Crossover: 35 Hz  250 Hz
• Damping Factor: > 400
• Power Terminal Gauge: 8 AWG
• Fuse Rating: 50A

Measurements:

• Length: 4.76" / 121 mm
• Width: 4.33" / 110 mm
• Height: 1.81" / 46 mm
