B2 Audio Black 4v 10 Channel DSP with Bluetooth iOS/Android App 96 KHz - 32 Bit

• Advanced Digital Signal Processing – 6-input, 10-output DSP with 96 kHz, 32-bit resolution for crystal-clear audio and precise tuning.
• Wireless Control via Bluetooth – Adjust settings effortlessly using the iOS & Android app, offering real-time customization from your smartphone.
• High-Voltage Output for Optimal Performance – Each of the 10 output channels delivers a 4-volt signal, ensuring maximum clarity and power for your audio system.
• Compact and Durable Design – Engineered for seamless integration into any setup with a space-saving 4.5” x 5.75” x 1.5” form factor.
• Professional-Grade Sound Quality – Designed for audiophiles and car audio enthusiasts seeking precise frequency control, low distortion, and superior sound staging.

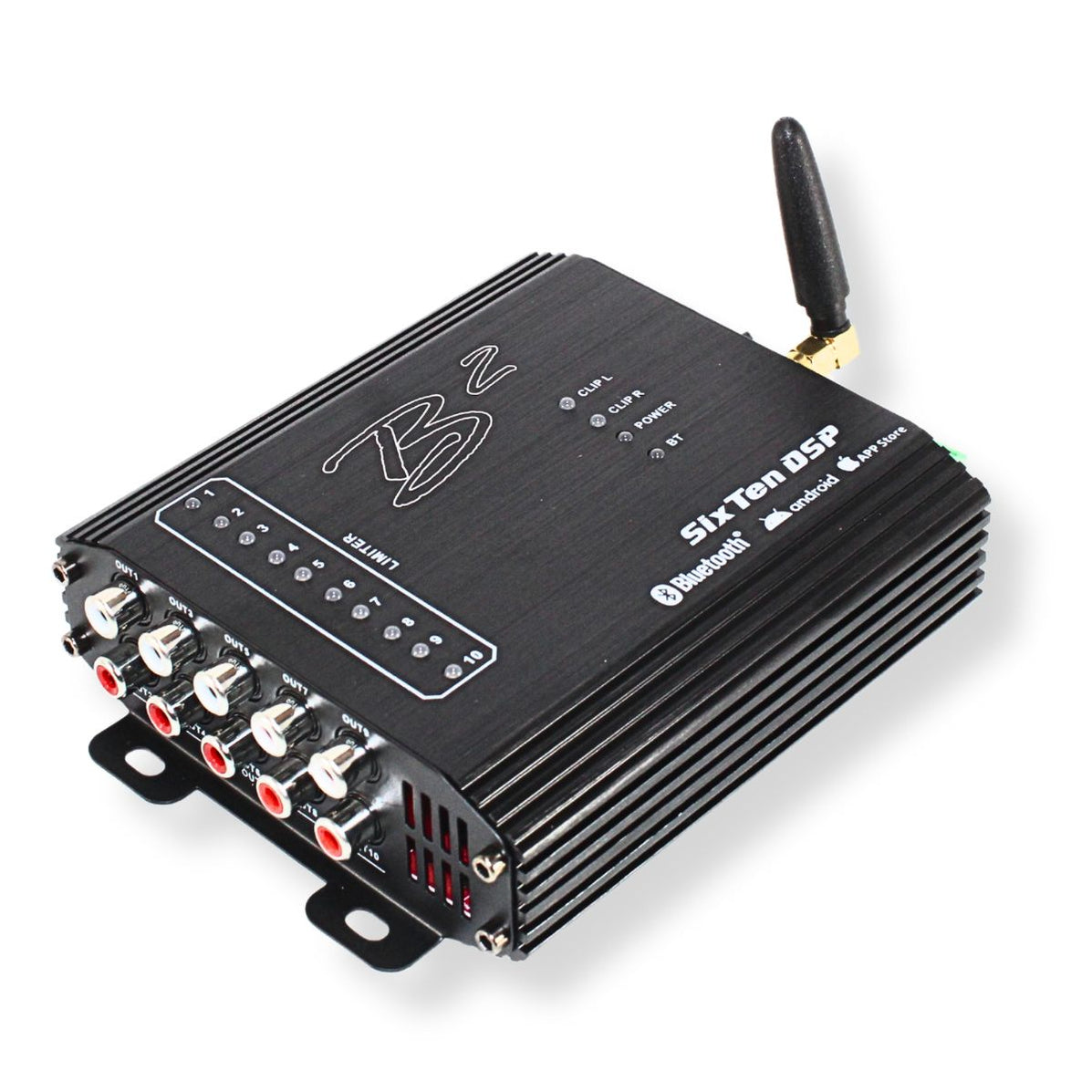

LIMITED EDITION B2 Audio Black 4v 10 Channel DSP with Bluetooth IOS/Android App 96 KHz - 32 Bit

This listing includes

• (1) B2 Audio SIXTEN, 6 Input - 10 Output 4v DSP

The B2 Audio SixTen DSP is a cutting-edge 6-input, 10-output digital signal processor designed for unmatched audio customization, now available in a limited run black finish version. With Bluetooth connectivity and an intuitive iOS/Android app, it delivers precise tuning through its 96 kHz, 32-bit resolution. Each of the 10 output channels provides a strong 4-volt signal, ensuring optimal performance for high-quality car audio setups.

Technical Specifications

• Inputs: 6 (3 Left/3 Right)
• Connectors: RCA
• Input Level Max: 4.00 Vrms (+ 14dBu)
• Outputs: 10
• Output Max Level: 3.50 Vrms (+ 13dBu)
• Frequency Response: 10Hz to 24KHz (-1dB)
• THD+N: <0.01%
• Signal Latency: <0.6 ms
• Bit Rate: 32-Bit
• Sampling Frequency: 96khz
• Voltage DC: 9.5 - 15v DC
• Maximum consumption: 350mA

Processing Technical Documents

Channel Routing:

• Routing Option: A/B/C/D/A+B/A+C/B+C

Gain:

• General Gain: -53 to 0dB
• Channel Gain: -33 to +9dB

Frequency Cut:

• Cut-Off Frequency: 20Hz - 20KHz
• Type of Cuts: Linkwitz-Riley / Butterworth / Bessel
• Attenuations: 6/12/18/24/36/48 dB/8 degrees

Input Equalizer (EQ in):

• Equalization Band: 31 Bands
• Gain: -12 to +12dB

Channel Equalizer (EQ Channel):

• Equalization bands: 8 parameter per channel
• Gain: -12 to +12 dB
• Q Factor: 0.6 - 9.9

Time Alignment (delay):

• Time: 0 to 18.95 ms
• Distance: 0 to 6500mm

Limiter:

• Threshold: -53 to +6dB
• Attack: 1 to 200ms
• Release: 1 to 988ms

Polarity Inversion (Polarity):

• Inversion: 0 or 180 Degrees

Memory (Preset):

• Memories: 3-100% Configurable

Product Dimensions:

• Length: 4.5"
• Width:  5.75"
• Height: 1.5"
• Weight: 13.6 oz
