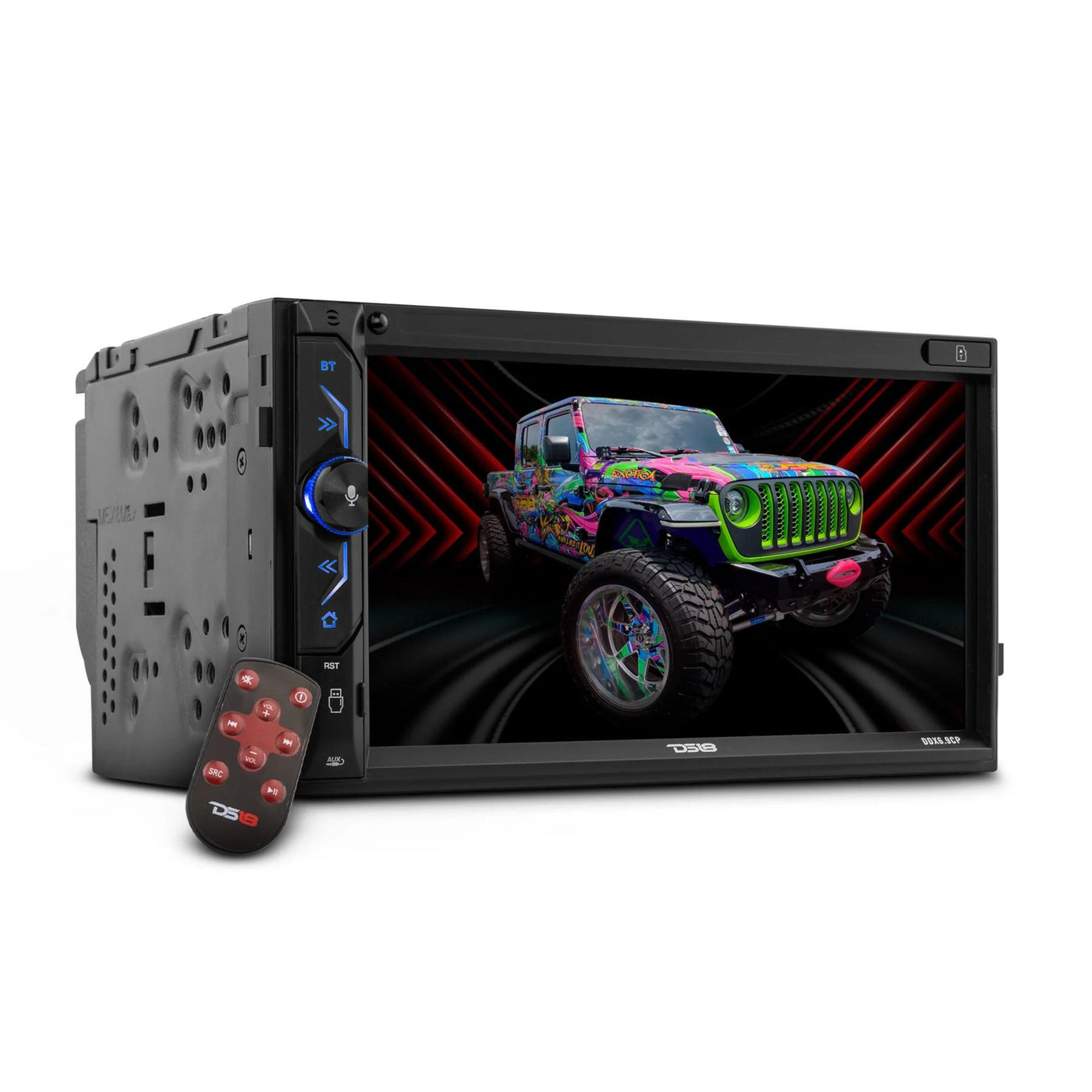

6.9" Car Stereo Touchscreen Double-Din Head Unit Bluetooth/AUX/SD DS18 DDX6.9CP

• Seamless Connectivity: Built-in Apple CarPlay, Mirror Link, and Wi-Fi for easy smartphone integration.
• Expandable Storage & Charging: Supports 64GB SD cards, 1.5A USB charging, plus 3 USB ports (1 front, 2 rear).
• Premium Sound Control: 10-band equalizer with adjustable frequencies from 32Hz to 16kHz, and +/- 6dB gain.
• Backup Camera Ready: Plug-and-play compatibility with most backup cameras via camera inputs.
• App Control & More: Easily manage settings with the DS18 DDXRC app, available on Google Play and the Apple Store.

6.9" Car Stereo Touchscreen Double-Din Head Unit Bluetooth/AUX/SD DS18 DDX6.9CP

This Listing Includes:

• (1) 6.9" Car Stereo Touchscreen Double-Din Head Unit Bluetooth/AUX/SD DS18 DDX6.9CP

The DDX6.9CP brings the Car Play feature to DS18’s long line of Multimedia Receivers. The DDX6.9CP allows you to utilize Apple Car Play, Mirror Link, Bluetooth, AUX, USB, SD, Phone Controls, and all your AM/FM Stations. The SD Reader and USB Adapter can use memory cards up to 64GB. At 4 ohms this unit offers 15x4 watts RMS and 40x4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup.

Features:

• 6.9-inch (16:9) 1080p
• 4v preamp outputs
• Full 10 Band EQ
• Wireless remote control for easy operation
• MIC in options for easy phone operation and built in controls.
• Apple and Android compatible.

Specifications:

• Rated power source: 14.4V DC (10.8V to 15V operation)
• Maximum Current Consumption: 15 Amp
• Maximum Power Output: 40W X 4 Ch / 4 ohm
• Continuous Power Output: 15W x 4 Ch / 4 ohm
• Pre-output Level: 4.5 Volts (Front, Rear, Subwoofer)
• Frequency Range: FM: 87.5 ~ 107.9 KHz - AM: 530 ~ 1710 KHz
• Presets Memory: 30 Stations (18 FM/12 AM)
• Screen Size / Aspect Ratio: 6.9 inch / Wide 16:9
• Pixels: 1024 x 600
• Temperature Operation: -14F to 140F

Dimensions:

• Chassis: 7"x 3.9"x 5.3"
• Weight: 1.8 Lb

Package Dimensions:

• Length: 9.5
• Width: 7"
• Height: 9"
• Weight: 3 lb
